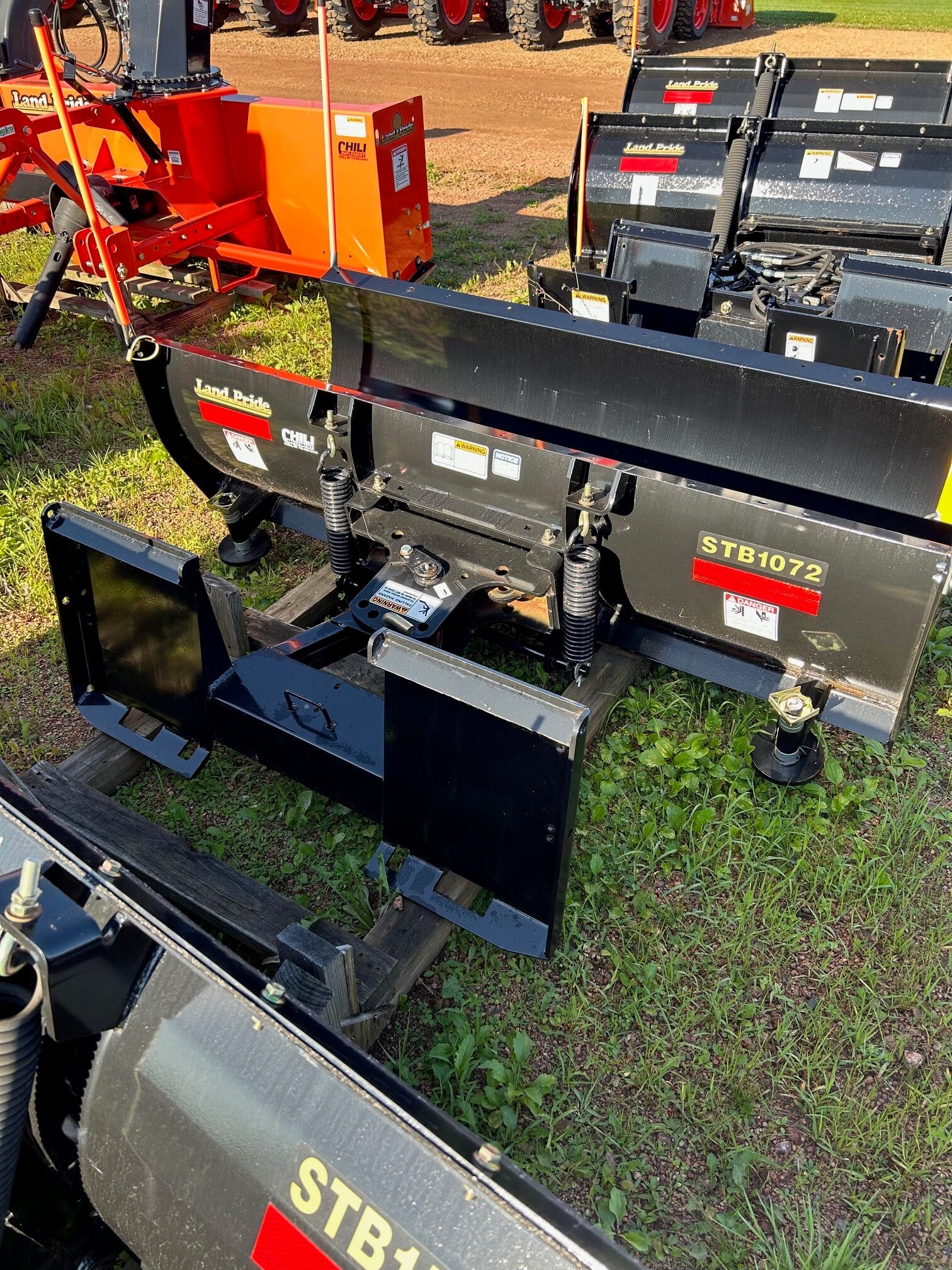

2023 LAND PRIDE STB1072

The STB1072 Snow Trip Blades are designed to fit tractor loaders. The STB1072 has a 6′ width for tractors with loaders in the 25-40 HP range. The 10 Series Model has a 21″ curved moldboard. Tractor Horsepower 25 to 40 hp (19-30 kW) Moldboard Thickness 12 Ga. (2.7 mm) Blade Width (Maximum Cutting Width) 72″ (1.8 m) Cutting Width @ 30o Angle 62″ (1.6 m) Moldboard Height (with blade) 22″ (56 cm) Maximum Blade Angle 30o left & 30o right Angle Cylinder Size 2″ bore x 6″ stroke Maximum Hydraulic Pressure 3000 psi (20.7 MPa) Cutting Edge (Steel & Poly) 1/2″ x 6″ replaceable & reversible Trip Release Pressure 600 lbs. (272 kg)
